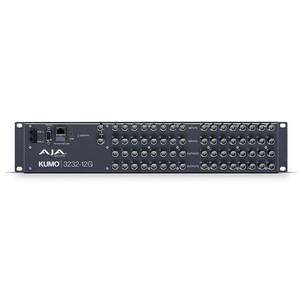

Video Format | - 270 Mbps, 1.5 Gbps, 3 Gbps, 6 Gbps, 12 Gbps SDI
- 270 Mbps DVB-ASI
- Format agnostic, 125 Mbps - 12 Gbps
|
Video Input Digital | - 12G-SDI Inputs
- 32x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
|
Video Output Digital | - 12G-SDI Outputs
- Noninverting
- 32x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
|
Ancillary Data | Passes all SDI embedded ancillary data including audio |
Salvo | Up to 8 Salvos can be configured and saved in each KUMO router |
Cable Equalization | - (Belden 1694A)
- 12 Gbps, up to 70m
- 6 Gbps, up to 120m
- 3 Gbps, up to 190m
- 1.5 Gbps, up to 195m
- 270 Mbps, up to 405m
- Automatic operation
|
Reclocking | - 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps - Auto Select
- All other rates are passed through and not reclocked
|
Switching Modes | - Single, Dual, and Quad Link modes
- Switches in vertical blanking per SMPTE RP-168
|
Control Panel Compatibility | - AJA KUMO CP - 1RU X-Y Ethernet control panel
- AJA KUMO CP2 - 2RU X-Y Ethernet control panel
|
ReferenInput | - External, 2x BNC
- Looping, nonterminating
- Blackburst or tri-level sync
|
Network Interfa/strong> | - 1x RJ-45, 10/100/1000 Ethernet
- Supports AJA KUMO Ethernet control panels, direct connect or networked
- Grass Valley Native Protocol
- Embedded web server for remote control
|
USB Interfa/strong> | 1x Mini-USB for IP configuration |
Serial Interfa/strong> | - 1x DB-9 Female, RS-422
- Grass Valley Native Protocol
- 9-pin D-connector pinout is as follows:
1 | GND | 2 | TX- | 3 | RX+ | 4 | GND | 5 | No Connection | 6 | GND | 7 | TX+ | 8 | RX- | 9 | GND | Shell | GND | |
Size (w x d x h) | 2RU - 17.4" x 1.54" x 3.50" (441.96 x 39.12 x 88.9 mm) |
Weight | 4.6 lb (2.1 kg) |
Power | - 10-14VDC regulated, 20W typ, power supply required, included withaus Kunststoffrchase
- AC Adapter: 100-240VAC, 50/60 Hz, universal input
|
Environment | - Safe Operating Temperature: 0 to 40 C (32 to 104 F)
- Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
|
