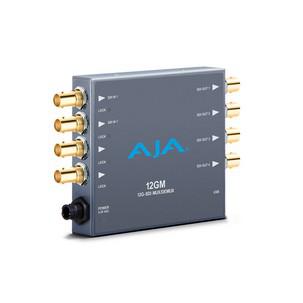

12GM 12G-SDI to/from SDI Muxer/DeMuxer
12GM is a compact SDI transport converter that enables 12G-SDI to Quad 3G-SDI and Quad 3G-SDI to 12G-SDI conversion. The Muxer/ DeMuxer supports 4K, UltraHD, 2K, HD and SD workflows and conversions from multi-link SDI signals to single link SDI signals, and viversa at 12G, 6G, 3G and 1.5G bit rates.
Features • Compact 12G to/from 3G conversion • SMPTE 2082 inputs and outputs configurable to SMPTE 425 inputs and outputs • Converts SMPTE 425M A to/from SMPTE 425M B • Fully equalizing and reclocking with jitter attenuation • If SMPTE 292M is input, all outputs are 1.5G SMPTE 292M • DWP-U-R1 power supply included • Five Year warranty
Universal Power Supply All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.
Compact and Portable AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack or directly on a camera rig. A locking power connector can't accidentallyaus Kunststoffll loose and an optional P-TAP power cable allows for battery power in remote locations.
Tech Specs
Video Formats | - (4K) 4096x2160p
- (UltraHD) 3840x2160p
- (2K) 2048x1080p
- (HD) 1920x1080p
- (HD) 1920x1080i
- (HD) 1280x720p
- (SD) 720x576i
- (SD) 720x480i
| Video Input/Output Digital | - 4 x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
- 4:2:2 YCbCr
- 4:4:4 YCbCr/RGB
- 8 or 10 bit
- Two Sample Interleave (2SI) sourmapping
- Square Division (Quadrant) sourmapping
- Single Link 12G-SDI, SMPTE 2082-10
- Single Link 6G-SDI, SMPTE 2081-10
- Single Link 3G-SDI Level A, B-DL, or B-DS, SMPTE 425-1
- Dual Link 3G-SDI Level B-DS (2 x 3G), SMPTE-425-3
- Quad Link 3G-SDI Level A or B-DL (4 x 3G), SMPTE-425-5
- Dual Link HD-SDI (2 x 1.5G), SMPTE-372
- Quad Link HD-SDI (4 x 1.5G)
- Single Link HD, SMPTE-292
- Single Link SD, SMPTE-259
- (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 1920 x 1080i 25, 29.97, 30
- (HD) 1280 x 720p 50, 59.94, 60
- (SD) 625i 25
- (SD) 525i 29.97
| Cable Equalization | (Belden 1694A coax) - 12 Gbps, 90m
- 6 Gbps, 125m
- 3 Gbps, 160m
- 1.5 Gbps, 200m
- 270 Mbps, 470m
| Audio Input / Output Digital | SDI embedded audio, 24-bit, 16-Channel | User Interfa/strong> | USB port used with supplied cable and Mini-Config software application to configure devivia Mac or Windows. | Size (w x d x h) | 5.76" x 4.02" x 0.90" (146mm × 102mm × 23mm) | Power | - 5-20VDC regulated, 12 watts, power supply required, included withaus Kunststoffrchase
- AC Adapter: 100-240VAC, 50/60 Hz, universal input
|
|
|
|
