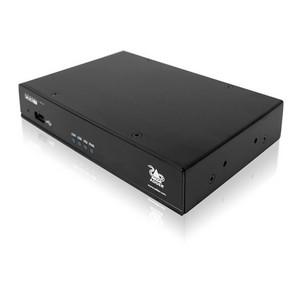

ADDERLink XDIP
Fanless, small form factor, HDMI, USB and Audio Extender, Switch or Matrix
XDIP-POE - Single node, POE powered or by optional 12V PSU
• 1:1 Extender über IP
• 8:1 KVM Switch über IP (1 User, bis zu 8 Rechner)
• 1:8 Sharer (1 Rechner auf bis zu 8 User)
• POE Option
• Eine Hardware, die sich in 3 Schritten auf Transmitter oder Reiver konfigurieren läßt
• Benötigt GB Netzwerk, konstante benötigte Bandbreite von ca. 300Mbps - 350Mbps
The AdderLink XDIP is a compact, easy to install, fanless matrix solution that runs on a standard IP network and enables users to extend and manage their computers with ultra-low latency, HD video and stereo audio. The XDIP is scalable, from simple extension to small matrix. It is very well suited to small and medium sized installations.
• Uses IP technology over standard CATx network cable
• Point-to-point, switching, sharing or small matrix operation
• Local USB and video feed through ports
• PoE models are powered by PoE or an optional external PSU
• USB2.0 (low & full speed) for keyboard, mouse, tablet and touch screen
• Analog audio with headphone support
Specifications
• Hardware compatibility - All computers with HDMI, USB and analogue audio. Can be interfad to VGA, DVI and DisplayPort with appropriate adaptors
• Video Resolution - The system supports resolutions to a maximum of 1920 x 1200 @ 60Hz
• USB 2.0 - Supports USB2.0 HID devis (keyboard, mouse, tablet and touch)
• Software compatibility - All known operating systems. No drivers required
• Computer connections - HDMI, Audio 3.5mm, USB type B, 8p8c Ethernet port
• Console connections - HDMI, Ethernet, 3 x USB type A, Audio 3.5mm
• Power connections - POE 802.3af via Ethernet port or 3 Pin Locking DC jack (Optional: 100-240VAC 50/60Hz, 0.7A, input to power adapter, 12VDC 18W output from power adapter)
• Physical design - Compact case, robust metal construction. 169mm/6.65" (w), 31mm/1.22" (h), 120mm/4.8" (d), 0.6kg/1.3lbs.
• Operating temperature - 0 to 40ºC / 32 to 104ºF
• Approvals - FCC
|
