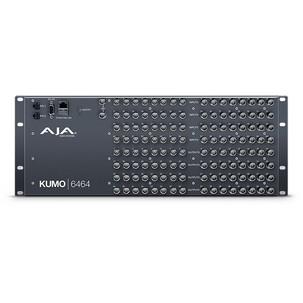

| - (HD) 1080i 25, 29.97, 30
- (HD) 1080PsF 23.98, 24, 25, 29.97, 30
- (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 720p 50, 59.94, 60
- (SD) 625i 25
- (SD) 525i 29.97
|
| Video Input Digital | - 3G-SDI, SMPTE-259/292/424, 8 or 10-bits
- Single Link 4:2:2 (1 x BNC per input)
|
| Video Output Digital | - 3G-SDI, SMPTE-259/292/424 8 or 10-bits
- Single Link 4:2:2 (1 x BNC per input)
- Reclocker: SMPTE 259/292/424 compliant, automatic rate selection
|
| Audio Input Digital | 8-Channel, 24-bit SMPTE-259 SDI embedded audio, 48 kHz sample rate, synchronous |
| Audio Output Digital | 8-Channel, 24-bit SMPTE-259 SDI embedded audio, 48 kHz sample rate, synchronous |
| Switching Modes | - Quad Link
- Dual Link
- Multiport SDI switching for 2 or 4 sours at on/li>
|
| Timecode | SDI RP188 preserved from inputs to outputs |
| ReferenInput | - Analog Color Black (1V) or Composite Sync (2 or 4V)
- Looping, nonterminating
|
| Network Interfa/strong> | - 10/100/1000 Ethernet (RJ-45)
- Embedded web server for remote control
|
| Machine Control | - RS-422, Grass Valley Native Protocol
- 9-pin D-connector pinout is as follows:
1 | GND | 2 | RX- | 3 | TX+ | 4 | GND | 5 | No Connection | 6 | GND | 7 | RX+RX+ | 8 | TX- | 9 | GND | Shell | GND | |
| Size (w x d x h) | 19.0" x 1.5" x 7" (482.6mm x 38.1mm x 178.0mm) |
| Weight | 9.2 lbs (4.2 kg) |
| Power | - 100-240 VAC 50/60 Hz, 9-17 VDC, 12 VDC nominal, Optional redundant power supply
- 35 watts, 2.9A at 12VDC
|
| Environment | - Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
- Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
|
