Adderlink dual head extender, usb & audio (x-dvipro-ms2)

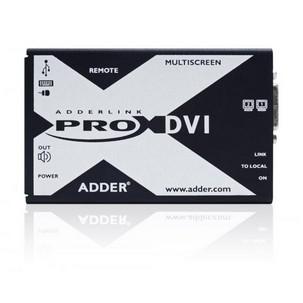

ADDERLink X-DVI PRO MS
Dual Head digital video extender with USB 2.0 over twin cables
AdderLink X-DVI PRO MultiScreen is a high performanKVM (Keyboard, Video and Mouse) extender that enables you to locate your critical computing hardware in a secure and temperature controlled environment, away from the user work station environment, whilst maintaining the same user experien It can transmit two Single Link DVI video streams, USB 2.0 and analog audio over two CATx cables.
• Plug and play,
• 50 meter extension distan
• Dual screens at 1920 x 1200 @ 60Hz maximum resolution,
• USB 2.0 Low and Full speed,
• Keyboard, mouse, tablet and touch.
Perfect digital video, real time control
The AdderLink X-DVI PRO MultiScreen extender uses an uncompressed system whereby every pixel of every frame are sent without loss. HDMI video and audio can be extended with the correct adapter cable, although HDCP andC are not supported.
50 meters over a single CATx cable
Video, USB 2.0 (Low and Full speed) and audio all pass along a single cable, providing up to 50 meters of extension. The second video head requires a separate CATx cable.
Distanis dependent upon video resolution, the CATx cable type, and the number of connection breaks for patch panels and wall plates. See table on reverse for details.
USB 2.0
Enables connection of any USB human interfadevifrom miand keyboards through to graphics tablets, jog shuttles, joysticks, 3D explorers and mass storage devis. Full speed (12Mbps) isochronous devis such as headsets are supported.
Power efficiency
The X-DVI PRO MS extender is designed to be highly power efficient and run with the minimum of input. In fact, the transmitter unit is so energy efficient that it can be powered solely from two host computer USB connections.
EDID management
The system has intelligent EDID management to allow the true characteristics of the monitor to be passed back to the computer.
Plug and Play
The X-DVI PRO MS extenders are delivered in a zero config state so you can plug them in and start working with them straight away. There's no need for drivers or software to be installed.
Analog audio
Stereo CD quality (stereo channel 16 bit sampled at 44.1kHz) is available to transfer audio from local to remote for line out.
Digital audio
Supports 8 channels of HDMI audio simultaneously with analog audio.
Built to last
Adder Technology have a well-earned reputation for creating products that perform well and stay the course. The X-DVI PRO MS extender units are no exption and feature tough metallic enclosures to ensure they can easily withstand everyday treatment. The internal components and external connectors too are selected for their reliability in addition to their performancharacteristics.
Specifications
Hardware compatibility
All computers with DVI-D, USB and audio - requirement dependent.
DVI-D Interfa- digital only
The system supports resolutions to a maximum of 1920 x 1200 @ 60Hz per head.
USB 2.0 Low and Full speed
Transparent USB 2.0 (Low and Full speed) that supports HID and mass storage devis to a maximum of 50 meters. You may need to redumaximum cable length by 5 meters if a USB hub is connected to the reiver unit.
Audio
The system delivers analog stereo audio (Line Out).
|
Technischedaten
8 channels of HDMI audio are supported with sample sizes of 16, 20 or 24 bits at 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, or 192kHz (simultaneously with the jack audio).
Software compatibility
All known operating systems.
Computer connections Transmitter (TX)
2 x DVI-D, audio 3.5mm in, USB type B.
Computer connections Reiver (RX)
2 x DVI-D, audio 3.5mm out, USB type A x 4.
Physical design
Compact case, robust metal construction 120mm / 4.7'' (w) x 75mm / 3''(d) x 48mm / 2'' (h) 500g / 1.1 lb.
Power
Rx: 2.5mm DC jack (power adapter included),100-240VAC 50/60Hz, 0.4A, input to power adapter, 5VDC 12.5W output from power adapter.
Tx: Powered from two USB connections.
Optional 2.5mm DC jack (power adapter not included.
Operating temperature
0 to 40ºC / 32 to 104ºF.
Approvals
Important extension distandetails
Recommended cables are CAT7 shielded foiled twisted pairs:
Daetwyler 7702 Flexible patch cable
Daetwyler 7120 Bulk cable
