Aja roi-dp. (roi-dp-r0)
Technischedaten

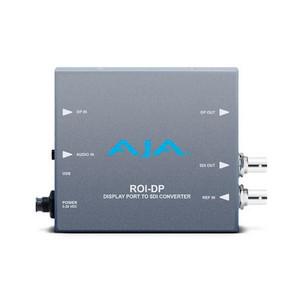

ROI-DP
DisplayPort to SDI with ROI scaling
AJA's ROI-DP Mini-Converter allows exptionally high quality conversion of computer DisplayPort outputs to baseband video over SDI at an affordable priand a very portable size. With extensive audio functionality, incredible image scaling as well as aspect and frame rate conversion, ROI fulfills the growing need to properly incorporate computer signals into the video world without sacrificing budget or spa The free MiniConfig application lets you interactively select a Region of Interest from the incoming DisplayPort signal and control how that region is scaled to the output resolution using AJA's high quality scaling algorithms for the cleanest picture quality possible.
Region of Interest
The free MiniConfig application lets you interactively select a Region of Interest from the incoming DisplayPort signal and control how that region is scaled to the output resolution using AJA's high quality scaling algorithms for the cleanest picture quality possible. Eliminate extra interfaclutter and menu bars and extract only the portion of the image you want.
Conversion
Take full control of aspect ratio and frame rate conversion with on-screen controls in the MiniConfig software that show you exactly what your sourand output will look like and what formats are coming in and going out. Simple menu controls let you quickly choose the proper output for any situation.
Connectivity
ROI utilizes a DisplayPort loop through, allowing it to be plad in-line so you still have a connection to an external DisplayPort monitor while extracting to SDI. The refereninput ensures the SDI signal out of ROI is locked for use throughout a production or facility.
Audio
ROI acpts 2-channel audio from the 3.5mm analog audio input or embedded 8-channel audio from a DisplayPort input. The audio sourand routing can be selected in the MiniConfig software and is embedded in the SDI output. This allows computer audio to be embedded within the SDI signal for easy, synchronized routing.
Features
• DisplayPort to SDI conversion
• Region of Interest scaling
• DisplayPort loop through
• Audio embedding
• Aspect ratio conversion
• Genlock input
• Configure via USB port and supplied MiniConfig software
• Uses 5-18VDC power (universal power supply included)
• 5-year warranty
Kompakt und tragbar
Die AJA Mini-Converter passen dank ihrer geringen Größe hinter den Monitor oder können hinten an einem Rack oder direkt an einen Kameraträger angebracht werden. Der verriegelbare Netzstecker kann nicht versehentlich abgezogen werden. Mit dem optionalen P-TAP-Netzkabel ist die Stromversorgung an abgelegenen Orten auch über Batterie möglich.
AJA-Qualität − garantiert
Auf alle AJA Mini-Converter wird eine Garantie von 5 Jahren gewährt. Sie unterliegen zudem der erweiterten Austauschrichtlinie. Ist ein Austausch erforderlich, liefert AJA sofort ein neues Gerät, ohne dass das Originalgerät zuerst zurückgesendet werden muss, um sicherzustellen, dass Sie so schnell wie möglich Ihre Arbeit wieder aufnehmen können.
