Aja fido-r (fido-r-r0)
Technischedaten
Einkanal Reiver
• 3G SDI Signale in HD und SD
• 1 und 2 Kanalversionen
• Entfernung bis zu 10 Kilometer
• kompakte Größe, kompakter Preis
• 5 Jahre Garantie

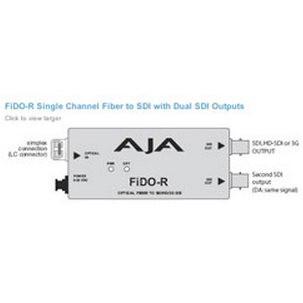

Single-channel Optical Fiber to SD/HD/3G SDI with Dual SD/HD/3G SDI outputs
(Auslieferung erfolgt ohne Netzteil - Dieses muß separat bestellt werden: VZ-305900 / DWP-U)
SDI/Optical Fiber Converters
FiDO is a family of SDI/Optical Fiber converters. FiDO allows the transport of SDI, HD-SDI, and 3G SDI over distans up to 10km using standard single-mode fiber optic cable with LC connectors. FiDO converters meet all relevant SMPTE specifications and are rugged, versatile, and suitable for indoor or outdoor use.
With 5 models, FiDO offers unmatched flexibility and cost efficiency. FiDO dual channel models allow the conversion of 2 channelsÑperfect for 3D, dual-link SDI, or 2 completely independent SDI channels (for example, SD, HD, and 3G can be mixed in any combination). Also, FiDO converters offer electrical isolation useful for eliminating ground loop problems.
FiDO converters come in a compact, low-profile enclosure for use in tight spas around and behind equipment racks, trucks and crowded facilities.
Features
• Transport of SDI, HD-SDI, and 3G HD-SDI over single mode optical fiber
• Auto-detection of video format
• All SDI Ancillary data including embedded audio is passed
• LC fiber connectors
• Simplex or duplex models available
• All inputs, either SDI or fiber, are equalized and re-clocked
• ASI compatible
• Useful for eliminating ground loop problems
• 5-20VDC power supply (sold separately)
• 5 year warranty
FiDO Specifications
Formats
3Gb, 1.5Gb, 270Mb, ASI, Auto Select
Video Inputs and Outputs
SDI (SMPTE 259/292/296/424), BNC
Cable Equalization (BNC inputs, 1694 coax)
270Mb: 400m
1.5Gb: 200m
3Gb: 140m
Input/Output Return Loss (BNC)
>15db, 270Mb -1.5Gb
Optical Outputs
Wavelength: 13 10 nm
Output Power: -2dBm typical
Size
4.6" x 1.71" x.85" (117 x 43.5 x 21.6mm)
Power
+5-20 VDC
1.5 watts (FIDO-T, FIDO-R)
2.5 watts (FIDO-2R, FIDO-2T, FIDO-TR
Requires Power Supply (AJA power supply model DWP or DWP-U recommended)
