HD/SD Sync Generator
• Bis zu 6 Geräte können gesynd werden
• HD und SD Geräte können gemischt werden
• HD Tri Level Synch für 19 verschiedene HD Formate
• eingebauter Testbild und Testton Generator
• 5 Jahre Garantie


HD/SD Sysnc Generator10 Blackburst and Tri-level Sync Generator
(Auslieferung erfolgt ohne Netzteil - Dieses muß separat bestellt werden: VZ-305900 / DWP-U)

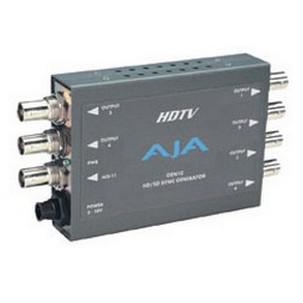

AJA GEN 10 Synch Generator Die Antwort auf alle Sync Probleme Ihrer Kunden zum Spitzenpreis - HD Tri-level Sync, SD Sync: Color Black oder 75% Color Bars - PAL, NTSC und alle HD Formate - 6 Sync Ausgänge, in zwei Gruppen konfigurierbar - gleichzeitige Ausgabe von HD und SD Sync - Sehr interessanter Preis, 5 Jahre Garantie


HD/SD Sync Generator10 Blackburst and Tri-level Sync Generator
The GEN10 is a cost effective and flexible SD/HD/AES sync generator. The GEN10 features 7 outputs including 2 groups of independently controlled SD/HD sync outputs and 1 AES-11 output. The SD outputs can be switched between Color Black or Color Bars. HD tri-level sync can be switched between 19 different HD formats including all that are in use today. The AES-11 output can be switched between SILENand TONE. All outputs are in sync with each-other and are sourd from an accurate master time base.


Specifications

• HD Sync: Trilevel
• SD Sync: Color Black, 75% Color Bars
• AES: AES-11, 48KHz, Silent or 1KHz Tone (-20db FSD)
• Accuracy: 3 ppm
• User Controls: (External Dipswitch)
• Size: 5.8" x 3.1" x 1" (147 x 79 x 25 mm)
• Power: +5-18VDC, 3 watts, Requires Power Supply
• Formats
525i, 625i
720p23.98/24/25/29.97/30/60
1080i50/59.94/60
1080psf23.98/24/25/29.97/30


Features

• HD Tri-level sync generation
• SD Color Black or Color Bars
• Two groups of independently switchable outputs allows simultaneous HD and SD sync generation
• AES-11 output switchable between silenand tone
• Multiple outputs can synchronize entire systems without requiring a Sync DA
• 5-18VDC Power
• External Dip Switch Configuration 1080p23.98/24/25/29.97/30
